Quick Test Contactless Walk Through Metal Detector With Temperature Sensor

Quick Test Contactless Walk Through Metal Detector With Temperature Sensor

Product Temperature Description
1. Temperature Measurement Walk Throught Metal Detector
2. The temperature measurement distance is long and the error is very small.
3. The temperature measurement distance is within 5/10/20cm and the temperature error is no more than 0.5 degree
4. Temperature measurement is fast
5. Each person can complete the test within 0.5 seconds
6. Calibration at different locations
7. It can be used according to different places for temperature accuracy
Product Metal Detector Functions
1. The system has the function of displaying environmental monitoring data;High performance, high sensitivity and high stability;
2. Equipped with system networking, able to manage multiple devices through 1 PC (optional)
3. Preset the weight, volume, size, location, key, jewelry, belt buckle and other false alarms of metal items.
4. It complies with EMC electromagnetic radiation standard and adopts weak magnetic field technology, which is harmless to pacemaker wearers, pregnant women, sight, film and instant belt
5. Meet EMC electromagnetic radiation standards, using weak magnetic field technology, pacemaker wearers, pregnant women, floppy disk, film, video and other harmless


Technical specification:
Vertical evening size: 2200*850*430mm
Vertical channel size: 2000*720*430mm
Package size:2270*700*230mm
Net Weight:43KG
Gross Weight:48KG
Working Voltage :AC100V-240V 50/60Hz
Power: 12W
Operation Frequency: 1-50 Frequency band
Working Temperature:-20~85
Installation Environment:Width 100cm* length 200cm (minimum range without metal) sheet transverse
Location detection of metal range:Maximum sensitivity > 50g metal

Functional configuration
Carry metal object can eliminate function
Double high brightness red and green digital tube display function
Integrated four - key panel operation mode
One-click remote operation mode
Multiple networking interfaces
External control alarm device port
Secondary development port/upgrade port
Through the number of statistics function
Alarm times statistical function
Through the number of people in and out of the query function
Password protection
Multi-location simultaneous detection and alarm function
Alarm indicator light for large item detection intelligent partition
Super brightness patch intelligent partition alarm indicator light
Super brightness patch double row location indicator light
80 optional working frequencies
Alarm sound mute mode setting
Front and rear unilateral location alarm indicator light conversion function
Infrared start-stop function
Front bilateral location alarm indicator light
Front and rear four location alarm indicator light
The sensitivity of each detection area can be adjusted
The sensitivity of each region is adjustable to 0-255
Safety level 1-100 optional
Battery life 2 or 8 hours/optional

Technical Standard
Electrical appliances shall be implemented in accordance with EN60950 safety standard
Radiation is performed in accordance with en 50081-1
Anti-interference is implemented in accordance with en50082-1 standard
The company has passed is09001:2008 quality management system certification
The enterprise has passed the occupational health certification of 0HSASI 8001
The enterprise has passed the occupational health certification of 0HSASI 8001
The enterprise has passed the occupational health certification of 0HSASI 8001
Carton sizes & weight (one set has 2 cartons):
2270mmx700mmx230mm, GW: 48KG
400mmx259mmx200mm , GW: 4KG
​​

Delivery Time
1 sample, 1-2 Days
10-100PCS, 4-5 Days
200-500PCS, 8-12 Days
Factory Photo

Contactless Walk Through Metal Detector

0.5S Walk Through Metal Detector

wtmd metal detector

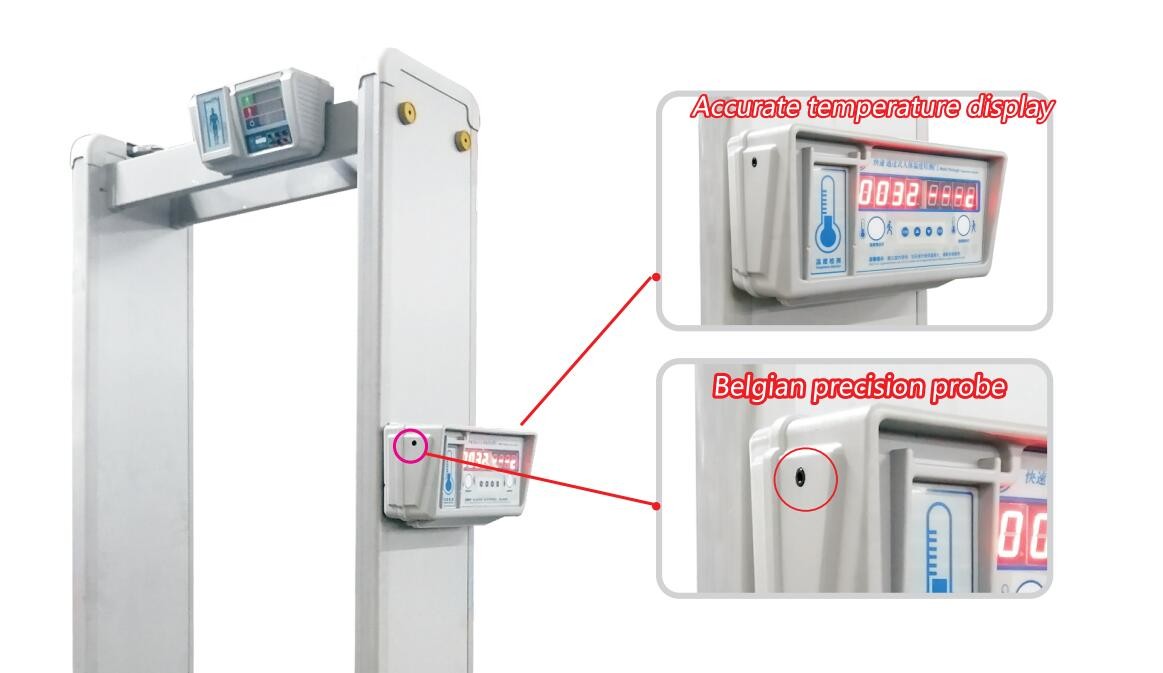

Quick Test Contactless Walk Through Metal Detector With Temperature Sensor Images
